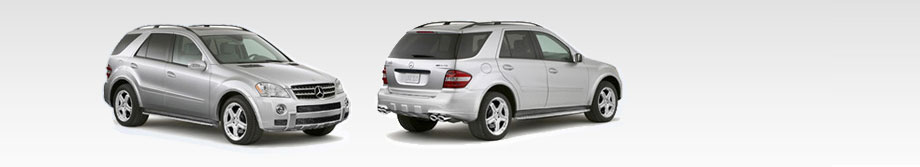

The 2007 ML63 AMG


Mercedes-Benz 2007 ML63 AMG - Interior and Exterior


  • Modular COMAND Cockpit Management and Data system integrates AM/FM stereo/weatherband radio, single-CD player, a large color-LCD screen, controls for the optional glovebox-mounted single-feed 6-disc CD changer, Navigation System, SIRIUS Satellite Radio, and Hands-Free Communication System. Ten mode-dependent soft keys alongside the screen provide easy access to commands and menus.
  • harman/kardon® LOGIC7® digital surround-sound system.
  • Auxiliary input jack in glovebox allows connection of an iPod or other MP3 player to the audio system (not available with Rear-Seat Entertainment System).
  • Fiber-optic network offers precise, high-speed communication among components and includes factory preparation for CD changer.
  • Tele Aid system uses GPS satellites plus a cellular link to provide 24-hour live assistance for emergency aid (SOS button), information (i-button) or Roadside Assistance (Wrench button). Basic Tele Aid Security & Care service includes Automatic Collision Notification, Stolen Vehicle Recovery, Remote Door Unlock service and Dealer Connect.


  • Front suspension
    Independent double wishbone with high-strength forged aluminum-alloy upper arms and cast-iron lower arms. Antidive geometry. Stabilizer bar.
  • Rear suspension
    Independent 4-arm multilink. High-strength forged aluminum-alloy upper arms. Geometry for antisquat and alignment control. Stabilizer bar.
  • Airmatic Semi-Active Suspension with Adaptive Damping System (ADSII)
    Standard AMG Airmatic sport suspension. Electronically controlled pneumatic spring-struts integrate variable-rate shock absorbers and coil springs. ADSII continually optimizes ride and handling by automatically selecting one of four damping profiles for each spring-strut every time a wheel changes its direction of up-down travel. Driver-selectable Auto, Comfort, and Sport modes change the thresholds of wheel/body movement at which the damping profiles are changed. Automatic 4-wheel level control includes driver-selectable ride height, which can raise the vehicle by up to 3.1 inches with the touch of a button, and automatic vehicle-speed-sensitive lowering, which can reduce the ride height by 0.6 inches at higher speeds.
  • Steering type
    Vehicle-speed-sensitive rack-and-pinion with integrated hydraulic damper.
  • Turning circle
    37.9 ft curb-to-curb.
  • Steering wheel turns
    3.62 lock-to-lock.
  • Wheels
    Standard AMG 5-spoke design, 10.0J x 20.
  • Tires
    Standard 295/40ZR 20 high performance.
  • Brakes
    AMG-enhanced dual-circuit power-assisted 4-wheel disc brakes. 15.4" internally ventilated front and 14.4" internally ventilated rear discs.
  • Antilock Braking System (ABS)
    Standard 4-channel ABS senses impending wheel lockup under heavy braking and pumps the front brakes individually or the rear brakes together (to help maintain stability) as needed up to thirty times per second, to prevent lockup and maintain steering ability. With off-road driving program selected, automatic loose-surface program helps shorten stopping in off-road conditions where some wheel lockup is advantageous.
  • Brake Assist (BAS)
    BAS senses emergency braking via the speed at which the driver presses the brake pedal and immediately applies maximum available power boost, potentially reducing the overall stopping distance by eliminating the delay caused by a common human tendency not to brake hard enough, soon enough. Letting up on the brake pedal releases Brake Assist.
  • Electronic Brake Force Distribution
    Standard Electronic Brake Force Distribution shifts additional brake force to the rear wheels in straight-line braking, to promote more even brake-pad wear. For stability in curves, a normal front/rear split is restored.


  • Transmission
    AMG SPEEDSHIFT™ 7-speed automatic. Steering-wheel-mounted Direct Select shifter provides convenient selection of Park, Reverse, Neutral, and Drive. Touch Shift with fingertip shift controls permits the driver to manually downshift and allows upshifts in Drive, via rocker buttons behind the upper steering-wheel spokes. Driver-adaptive programming adjusts shift points to the driver's current driving style. Selecting off-road driving program raises shift points automatically. Shift into Optimum Gear programming allows one-touch selection of the best gear for maximum acceleration or engine braking by holding a Touch Shift button in the downshift position for one second.
  • Drive configuration
    4MATIC™ permanent 4-wheel drive with 40/60 front/rear torque split maintained via a single speed transfer case and center differential.
  • Front and rear axle ratios
  • Downhill Speed Regulation (DSR)
    Driver-activated DSR automatically modulates the throttle, brakes, and Antilock Braking System to maintain a preset crawl speed when descending hills. Speed is pre-programmed at 4 mph but may be adjusted between 3 mph and 10 mph via the multifunction steering wheel. DSR can be used when the gear selector is in Drive or Reverse. Driver can override DSR by pressing the accelerator or switching DSR off via its console-mounted switch.
  • Hill-start assist
    To help prevent unwanted vehicle rollback when taking off from a stop on an incline, hill-start assist automatically maintains brake pressure for approximately one second after the driver releases the brake pedal. The system is automatically deactivated when the vehicle is level, the gear selector is in Park or Neutral, or the parking brake is set.
  • Driver-adaptive electronic 7-speed automatic with column shifter


  • Engine
    AMG-built 6,208-cc DOHC 32-valve V-8. High-pressure die-cast alloy cylinder block. Alloy heads. Reinforced engine block, oil pan structure, pistons, connecting rods, crankshaft, and valvetrain.
  • Net power
    503 hp @ 6,800 rpm
  • Net torque
    465 lb-ft @ 5,200 rpm
  • Compression ratio
  • Fuel requirement
    Premium unleaded gasoline, 91 pump octane.
  • Fuel tank
    (capacity - reserve) 25.1 gal - 3.4 gal
  • Fuel and ignition system
    AMG-modified engine management system. Integrated sequential multipoint fuel injection and phased twin-spark ignition includes individual cylinder control of fuel spray, spark timing/phase, and antiknock. Electronic throttle. Two high-energy ignition coils and two spark plugs per cylinder. 100,000-mile spark plug intervals.
  • AMG-built 6.3L 32-valve V-8 engine

Exterior Dimensions

  • Wheelbase
    114.7 in
  • Overall length
    189.8 in
  • Overall height
    73.3 in
  • Overall width
    76.8 in
  • Front track
    64.0 in
  • Rear track
    64.1 in
  • Coefficient of drag
    0.37 cd
  • Curb weight
    5,093 lb
  • Maximum low-speed fording depth

Exterior Features

  • Four 20-inch AMG 5-spoke alloy wheels with 295/40 ZR20 high-performance tires.
  • High-gloss black radiator grille with chrome highlights.
  • AMG-style front apron with black mesh-covered air inlets and integrated foglamps with chrome trim.
  • Dual chrome AMG twin tailpipes.
  • Dual power mirrors that are automatically heated.
  • Neutral-tinted glass for windshield and front doors.
  • Privacy glass for rear doors, rear quarters, and tailgate.
  • Infrared rain sensor automatically adjusts wiper speed and intermittent wiper frequency from infinite delay to constant wiping based on the amount of rainfall measured on the windshield.
  • Intermittent rear-window wiper with washer. When the front wipers are on, shifting to Reverse activates the rear window wiper.
  • Electrically heated rear window with auto-shutoff based on time and outside temperature.
  • Hydraulically assisted tailgate closing feature gently pulls tailgate snug once it is set on its latch.
  • Brushed chrome protective sill plate on rear bumper.
  • Black protective-coated roof rails with a 220-pound roof load capacity.
  • Running boards.
  • Variable-focus halogen headlamps with projector low beams and clear high-impact polycarbonate lenses.
  • Halogen front foglamps in front apron. Single red rear foglamp integrated in left taillamp.
  • Driver-selectable light-sensing headlamps can be set via the Auto position of the headlamp switch to automatically illuminate in darkness, and when entering dark tunnels or parking garages.
  • Driver-programmable daytime running lamps with auto-on override in darkness.
  • Automatic lamp substitution uses a nearby lamp if a critical bulb fails.
  • Touch Turn Signals flash three times with one touch of the turn-signal lever, for lane changing. Auxiliary LED turn-signal indicators are integrated with side mirror housings.


  • AMG instrument cluster with silver-color aluminum trim panel with AMG logo.
  • Digital display for odometer and Direct SelectTM gear selection.
  • Multifunction display in instrument cluster, scrolled via steering-wheel controls to operate and display various menus and vehicle features including the resettable trip meter and outside temperature indicator; digital speedometer; Maintenance System and engine oil-level check; radio station; CD player/CD changer; iPod playlist/track (with accessory Integration Kit); Navigation System route guidance; vehicle reminder and malfunction messages; driver-programmable settings for instruments, lighting, vehicle, and convenience features; trip computer (elapsed time, fuel consumption, distance to empty) and cellular phone book.
  • Low Tire Pressure Warning System alerts driver to a loss of tire pressure via the multifunction display.
  • Mercedes-Benz Maintenance System Plus displays the distance remaining until the next basic maintenance service, indicates the type of service due, and provides an automatic reminder feature when the service interval draws near. The system also monitors brake-pad wear.
  • Messages/audible reminders for open door or sunroof; exterior lamp failure; low fuel, engine oil, coolant, or washer fluid; and to release parking brake, switch off headlamps, or remove the ignition key.

Interior Dimensions

  • Front headroom
    39.9 in
  • Rear headroom
    39.8 in
  • Front legroom
    42.2 in
  • Rear legroom
    40.0 in
  • Front shoulder room
    59.9 in
  • Rear shoulder room
    59.8 in
  • Cabin capacity
  • Cargo volume floor-to-ceiling
    29.4 cu ft (rear seats in use), 72.4 cu ft (rear seats lowered)

Interior Features

  • Dual-zone automatic climate control with dual rotary temperature controls, automatic control of blower speed and airflow distribution (with manual override). Dash-top diffuser vent. Rear-cabin air vents at rear of front console.
  • Electrostatic dust and pollen filter.
  • Tunnel mode offers one-touch closing of all windows, the optional sunroof, and cabin air intake by holding the air-recirculation button. Holding the button again restores previous window and sunroof positions.
  • Multifunction steering wheel provides convenient additional controls for basic functions of audio system and optional phone plus operation of multifunction display.
  • Power windows, all with one-touch express-up/down.
  • 4-way (tilt/telescoping) power-adjustable steering column.
  • Electronic cruise control.
  • Four reading lamps. Courtesy lamps with programmable fade-out time. Entrance lamps in all four doors.
  • Front footwell lighting. Low-intensity ambient lighting of center console.
  • Illuminated vanity mirrors in sun visors.
  • Front center console with padded armrest, metal-trimmed lateral assist grips, enclosed storage, and dual large-capacity cupholders.
  • Illuminated 2-tier glovebox. 12-volt power outlet in ashtray (with lighter).
  • Folding rear center armrest and dual cupholders. One 12-volt power outlet at rear of front console.
  • Magazine nets on the backs of the front seats. Parcel net in right front footwell.
  • Illuminated, carpeted cargo area with floor-mounted tie-down hooks, grocery bag hooks on back of rear seat, and 12-volt power outlet in side panel.
  • Auto-dimming mirror.

Locking & Security

  • SmartKey uses an electronic code to unlock the steering column and ignition. Removing the SmartKey from the ignition disables the engine computer to help prevent unauthorized starting.
  • SmartKey remote control integrates Remote Door Lock/Unlock buttons, tailgate unlock button (or optional power tailgate open/close), removable valet key, and panic alarm.
  • SmartKey remote locking uses redundant infrared and radio-frequency signals for improved range, and rolling-code signal for protection from transmitter cloning. Driver may selectively unlock only the driver's door and fuel filler, or all doors plus the tailgate and fuel filler.
  • SmartKey offers infrared-remote opening/closing of windows and optional sunroof.
  • Driver-programmable driveaway locking automatically locks the doors when the vehicle reaches 9 mph.
  • Night security illumination uses the vehicle's exterior lights to help illuminate a path after parking. Driver-programmable intervals allow lights to stay on for 60, 45, 30, or 15 seconds, or not at all.
  • Locator lighting uses the vehicle's lights to help light a return path when the car is remote-unlocked in darkness. Unlocking the car activates the illuminated entry system.
  • Automatic antitheft alarm system and remote panic feature.
  • Integrated 3-button garage door control, compatible with HomeLink® components and some other systems.
  • Tele Aid GPS-based Stolen Vehicle Recovery helps law enforcement agencies track and recover stolen vehicle.
  • Tele Aid Remote Door Unlock allows the owner to have the doors automatically unlocked in the event the SmartKey becomes locked inside vehicle.
  • Tele Aid Automatic Alarm Notification alerts Mercedes-Benz to contact the vehicle owner if the antitheft alarm sounds.


  • Acceleration
    0 - 60 mph in 4.8 seconds
  • Fuel economy
  • EPA estimate
    12 mpg
  • Highway estimate
    16 mpg
  • Emission certification
    Low Emission Vehicle (LEV)
  • Towing capacity
    5,000 lb (Class III)

Restraint Systems

  • Integrated Restraint System
    Driver and front passenger are each provided with a dual-stage front air bag, side-impact air bag, and 3-point seat belt with an Emergency Tensioning Device (ETD) and belt force limiter. Outboard passengers are each provided with rear side-impact air bags, a 3-point seat belt with ETD, and belt force limiter. Center passenger is provided with a 3-point seat belt.
  • Window Curtain Air Bags
    In a side impact exceeding a preset threshold, a multi-chamber air bag deploys along the front and rear side windows on the affected side of the car. The integrated rollover sensor automatically deploys the ETDs and, if deemed necessary, the Window Curtain Air Bags in the event of a detected rollover.
  • Adaptive dual-stage front air bags are deployed in response to a frontal impact exceeding a preset threshold of severity.
  • Occupant Classification System (OCS)
    OCS automatically adjusts the inflation rate of the front passenger's front air bag based on the weight category determined by weight sensor readings from the front passenger seat.
  • ETDs are deployed in the event of a front or rear impact exceeding a preset threshold of severity, or certain rollovers. A front ETD will not deploy if seat belt is unfastened.
  • Automatic Collision Notification engages Tele Aid SOS function if an air bag or ETD deploys.
  • Universal LATCH System
    (Lower Anchors and Tethers for Children) at outboard rear seating positions. Selectable passenger seat-belt retractors help secure child seats.
  • Front seat belts include manually height-adjustable shoulder belts and lower points attached to seat frames.
  • Active Front Head Restraints are adjustable for height and fore-aft.
  • Three individually height-adjustable and retractable rear head restraints.

Seating & Trim

  • 8-way adjustable front seats. Driver's seat includes adjustable lumbar support.
  • Heated front seats.
  • 60/40-split folding rear seatbacks and flip-forward seat cushions.
  • Multicontour seats.
  • AMG-designed Nappa leather upholstery and AMG floor mats.
  • Leather-trimmed steering wheel.
  • Polished Burl Walnut wood trim on console and doors. Aluminum trim along console assist grips.
  • Stainless-steel door-sill trim, including tailgate. Includes AMG lettering.

Traction Control & Stability Systems

  • 4-Wheel Electronic Traction System (4-ETS)
    Standard 4-ETS monitors the speed of all four wheels to detect wheel slip, then applies individual brakes as needed to provide the effect of locking the front, rear, and/or center differentials, and/or reduces excess engine power. 4-ETS continually balances the torque split to ensure that power is permitted to flow to the wheel(s) with traction.
  • Electronic Stability Program (ESP®)
    Standard ESP compares the driver's intended course, via steering and braking inputs, to the vehicle's response, via lateral acceleration, rotation (yaw) and individual wheel speeds. ESP then brakes individual front or rear wheels and/or reduces excess engine power as needed to help correct understeer (plowing) or oversteer (fishtailing). ESP also integrates all-speed traction control, which senses drive-wheel slip under acceleration and individually brakes the slipping wheel or wheels, and/or reduces excess engine power, until control is regained.
